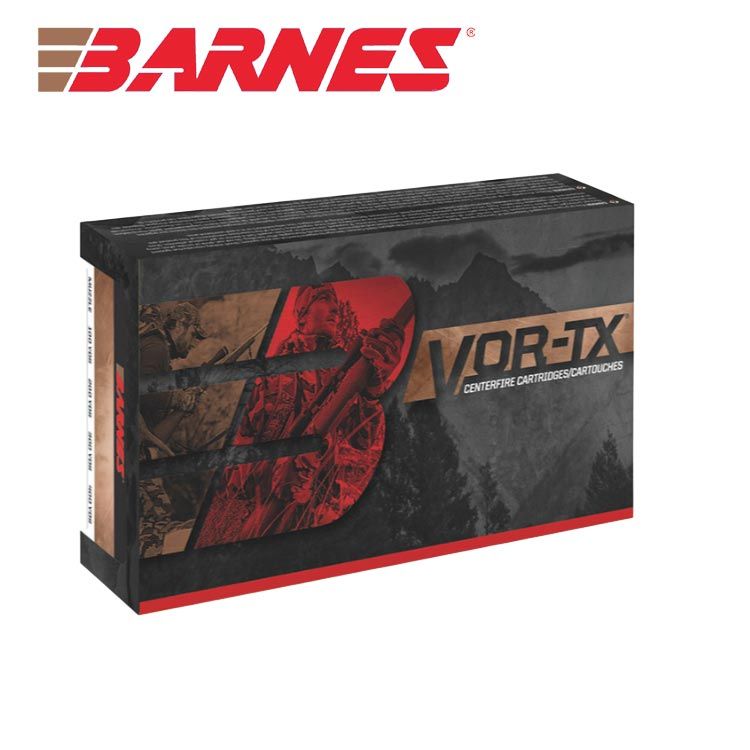

Barnes VOR-TX Rifle 30-06 Sprg 168 gr TTSX Boat Tail Ammunition 20/Box

Barnes VOR-TX Rifle 30-06 Sprg 168 gr TTSX Boat Tail Ammunition 20/Box

Barnes VOR-TX Rifle 30-06 Sprg ammunition uses a 168 gr TTSX Boat Tail projectile with an all-copper construction. The projectile is designed to provide double-diameter expansion, maximum weight retention and effective energy transfer. This loading produces a muzzle velocity of 2,850 fps and muzzle energy of 3,031 ft-lb from a 24" test barrel. At 200 yards, it retains a velocity of 2,467 fps and energy of 2,271 ft-lb. The projectile has a ballistic coefficient of 0.470, and the ammunition is packaged in a 20-round box.

Key Features

- 168 gr TTSX Boat Tail projectile
- All-copper projectile construction
- Designed for expansion and maximum weight retention
- Muzzle velocity of 2,850 fps
- Packaged in a 20-round box

All Technical Data

- Brand: Barnes
- Product line: VOR-TX Rifle
- Caliber: 30-06 Sprg
- Bullet weight: 168 gr
- Bullet type: TTSX Boat Tail
- Bullet construction: All copper
- Muzzle velocity: 2,850 fps
- Muzzle energy: 3,031 ft-lb
- Velocity at 100 yards: 2,654 fps
- Energy at 100 yards: 2,629 ft-lb
- Velocity at 200 yards: 2,467 fps
- Energy at 200 yards: 2,271 ft-lb
- Velocity at 300 yards: 2,288 fps
- Energy at 300 yards: 1,953 ft-lb
- Velocity at 400 yards: 2,116 fps
- Energy at 400 yards: 1,670 ft-lb
- Velocity at 500 yards: 1,951 fps
- Energy at 500 yards: 1,420 ft-lb
- Ballistic coefficient: 0.470
- Test barrel length: 24"
- Item number: 21565
- Quantity: 20 rounds

Why Choose This Product?

All-copper hunting configuration: This VOR-TX Rifle loading combines the 30-06 Sprg cartridge with a 168 gr TTSX Boat Tail projectile designed for expansion, maximum weight retention and effective energy transfer.
