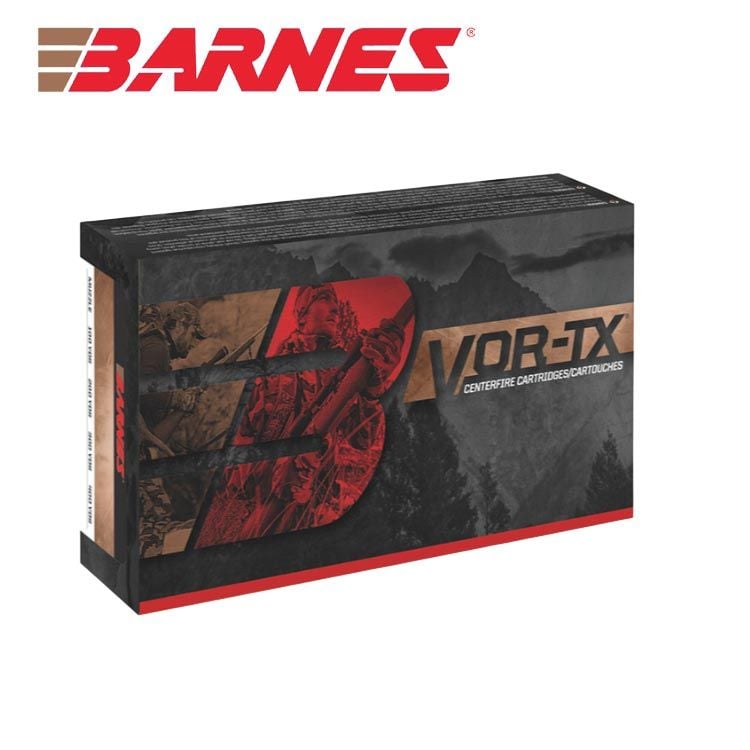

Barnes VOR-TX Rifle 300 WSM 165 gr TTSX Boat Tail Ammunition 20/Box

Barnes VOR-TX Rifle 300 WSM 165 gr TTSX Boat Tail Ammunition 20/Box

Barnes VOR-TX Rifle 300 WSM ammunition uses a 165 gr TTSX Boat Tail projectile with a 100% copper construction. The polymer-tipped projectile is designed to provide double-diameter expansion, maximum weight retention and effective energy transfer. This loading produces a muzzle velocity of 3,130 fps and muzzle energy of 3,590 ft-lb from a 24" test barrel. At 200 yards, it retains a velocity of 2,699 fps and energy of 2,669 ft-lb. The projectile has a ballistic coefficient of 0.442, and the ammunition is packaged in a 20-round box. :contentReference[oaicite:0]{index=0}

Key Features

- 165 gr TTSX Boat Tail projectile
- 100% copper projectile construction
- Polymer-tipped design
- Muzzle velocity of 3,130 fps
- Packaged in a 20-round box

All Technical Data

- Brand: Barnes
- Product line: VOR-TX Rifle
- Caliber: 300 WSM
- Bullet weight: 165 gr
- Bullet type: TTSX Boat Tail
- Bullet construction: 100% copper
- Muzzle velocity: 3,130 fps
- Muzzle energy: 3,590 ft-lb
- Velocity at 100 yards: 2,909 fps
- Energy at 100 yards: 3,101 ft-lb
- Velocity at 200 yards: 2,699 fps
- Energy at 200 yards: 2,669 ft-lb
- Velocity at 300 yards: 2,498 fps
- Energy at 300 yards: 2,286 ft-lb
- Velocity at 400 yards: 2,306 fps
- Energy at 400 yards: 1,948 ft-lb
- Velocity at 500 yards: 2,122 fps
- Energy at 500 yards: 1,651 ft-lb
- Ballistic coefficient: 0.442
- Test barrel length: 24"
- Item number: 21536
- Quantity: 20 rounds

Why Choose This Product?

All-copper hunting configuration: This VOR-TX Rifle loading combines the 300 WSM cartridge with a 165 gr TTSX Boat Tail projectile for hunters seeking a polymer-tipped, all-copper projectile with confirmed expansion, weight-retention and ballistic characteristics.
