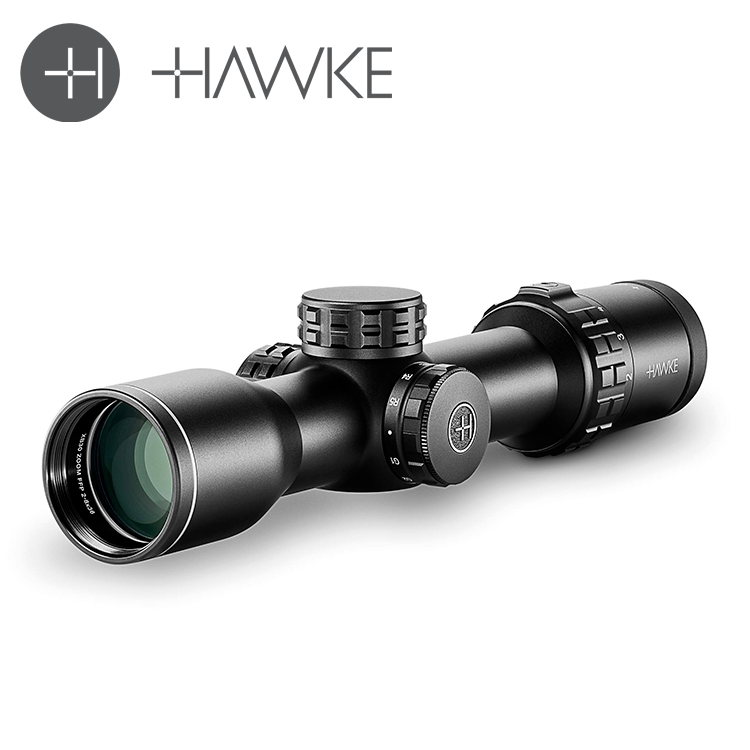

Hawke XB30 Zoom FFP 2-8x36 Crossbow Scope

Hawke XB30 Zoom FFP 2-8x36 Crossbow Scope

The Hawke XB30 Zoom FFP is designed to let the shooter use the full 2x to 8x magnification range while maintaining the correct distance references on the XB30 Zoom FFP reticle. Its first focal plane optical system changes the apparent size of the reticle with magnification, allowing the distance markers to remain correctly scaled instead of requiring the magnification setting to remain fixed for crossbow speed calibration. The scope is calibrated for crossbows from 425 to 465 fps and uses a 30 mm tube with a 36 mm objective lens. The reticle offers five illumination levels in red and green through a stepped rheostat, while the optical system uses 21-layer fully multi-coated lenses. Parallax is fixed at 50 yds, and elevation and windage adjustments use capped, low-profile, resettable turrets with 1/2 MOA click values and up to 120 MOA of adjustment. A fast-focus ocular and knurled Posi-Grip power selector complete the adjustment system.

Key Features

- First focal plane XB30 Zoom FFP reticle
- Full 2x to 8x magnification range with correctly scaled distance markers
- Calibrated for crossbow speeds from 425 to 465 fps
- 30 mm scope tube and 36 mm objective lens
- Five illumination levels in red and green
- 21-layer fully multi-coated lenses
- Fixed parallax at 50 yds
- Capped, low-profile, resettable elevation and windage turrets
- 1/2 MOA click adjustments
- Fast-focus ocular and knurled Posi-Grip power selector

All Technical Data

- Product type: Crossbow scope
- Product range: XB30 Zoom FFP
- Scope tube: 30 mm
- Magnification: 2x to 8x
- Objective lens: 36 mm
- Reticle: XB30 Zoom FFP
- Illumination: 5 levels, red and green
- Illumination control: Stepped rheostat
- Parallax: Fixed
- Focal plane: FFP (First Focal Plane)
- Lens coating: Fully Multi-Coated, 21 layers
- Optical system: System H7
- Field of view: 70.1 to 16.8 ft @ 100 yds
- Field of view: 23.4 to 5.6 m @ 100 m
- Field of view: 13.3° to 3.2°
- Eye relief: 2.8" / 70 mm
- PX/Focus: 50 yds / 46 m
- Click value: 1/2 MOA
- Exit pupil: 0.71" to 0.18" / 18 to 4.5 mm
- Elevation turret: Capped, low-profile, resettable
- Maximum elevation adjustment: 120 MOA
- Windage turret: Capped, low-profile, resettable
- Maximum windage adjustment: 120 MOA
- Ocular type: Fast Focus
- Power selector: Knurled Posi-Grip
- Speed calibration: 425 to 465 fps
- Length: 9.7" / 247 mm
- Physical weight: 16 oz / 455 g

Why Choose This Product?

The XB30 Zoom FFP is suited to shooters who want to change magnification without losing the calibrated distance references of the reticle. Its first focal plane design provides access to the full 2x to 8x range, while the 425 to 465 fps speed calibration, illuminated reticle, 1/2 MOA adjustments and capped resettable turrets provide a clearly defined setup for compatible crossbows.
