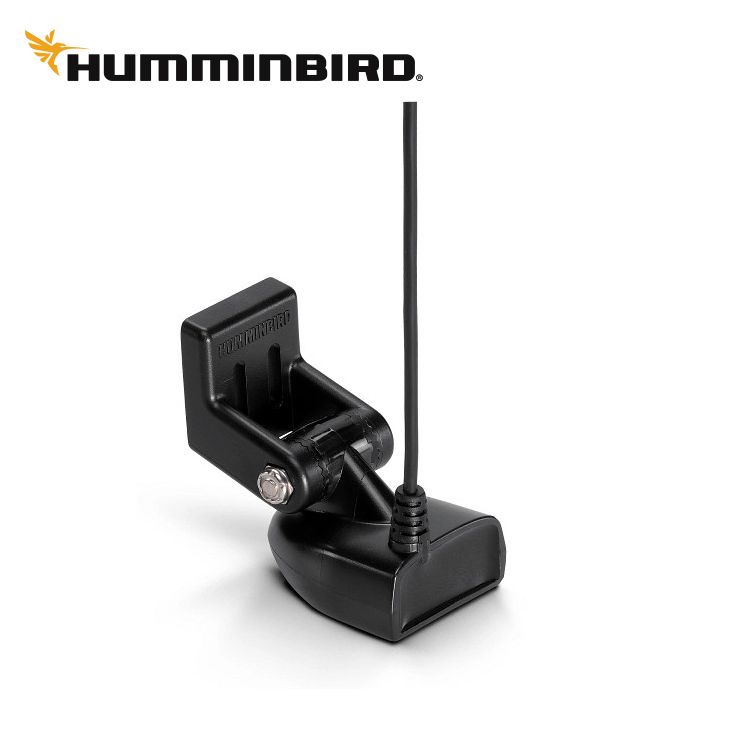

Humminbird XNT 9 20 T Transom Single/DualBeam Transducer

Humminbird XNT 9 20 T Transom Single/DualBeam Transducer

The Humminbird XNT 9 20 T mounts easily on your boat’s transom and delivers dependable 2D sonar performance with both narrow and wide beam options for structure and fish detection. With a 20° and 60° beam at 200/83 kHz and integrated temperature sensor, you gain valuable depth and water conditions feedback to improve your fishing strategy. Designed to fit many Humminbird fish finders (especially HELIX-series units), this transducer gives you clear sonar returns and essential temperature data without extra complexity. Its cable and mounting hardware make installation straightforward so you can get on the water faster with confidence.

Key Features

Transducer Type: Single/DualBeam 2D Sonar
Frequencies: 200/83 kHz
Beam Angles: 20°/60°
Mounting: Transom mount with included hardware
Temperature: Built-in temperature sensor
Cable: 20-foot cable included

All Technical Data

Transducer Type: Single/DualBeam 2D Sonar
Frequencies: 200/83 kHz
Beam Angles: 20°/60° @ -10 dB
Temperature Sensor: Built-in
Mount Type: Transom mount
Cable Length: 20 ft (approx.)
Compatible With: All HELIX Series except non-CHIRP DI models, Matrix 10/12/15/17/20/27/67/77/87/97 Series, All 100/300/500/600/700/800/900/1100 Series except DI & 3D models (maximum capability of transducer)

Why Choose This Product?

The Humminbird XNT 9 20 T gives anglers a reliable, straightforward sonar upgrade with both narrow and wide beam coverage so you can see structure and fish more clearly. Its built-in temperature sensor and broad compatibility make it a practical choice for many Humminbird fish finders — keeping your setup simple and effective out on the water.
