L.E. Wilson Expanding Mandrel Only 6 mm

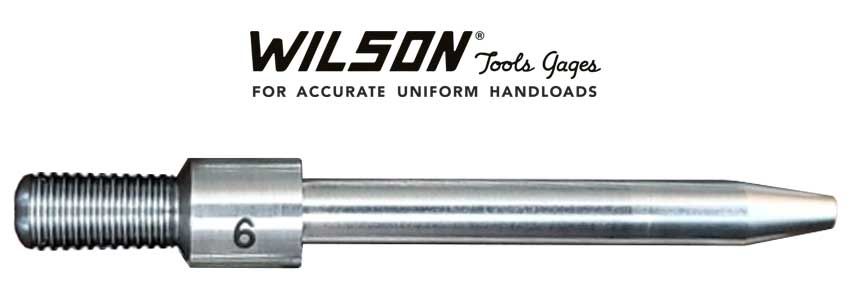

L.E. Wilson Expanding Mandrel Only 6 mm (.242″)

The L.E. Wilson Expanding Mandrel Only 6 mm (.242″) features a die body with a cut-out for visual alignment and ships with one mandrel sized for 6 mm (≈ 0.242″). It is engineered for new (unused) brass cases that may be slightly damaged or have inconsistent neck geometry; by expanding the neck uniformly you can achieve more consistent neck tension and therefore improved seating depth and accuracy. The tool uses stainless-steel components and standard 7/8-14 press mounting.

Key Features

Calibre Supported: 6 mm (≈ 0.242″)
Included Mandrel: One mandrel sized for 6 mm
Visual Alignment Cut-out: Die body includes window to verify alignment
Designed for New Brass: Corrects neck diameter inconsistencies before first firing
Construction: Stainless-steel parts for durability and accuracy

All Technical Data

Calibre / Size: 6 mm (≈ 0.242″)
Usage: Expand case neck of new brass just under bullet diameter before seating
Threading: Standard 7/8-14 die thread (fits most reloading presses)
Construction Material: Stainless steel components for durability
Includes: One mandrel sized for 6 mm (≈ 0.242″)
Purpose: Prepare new brass cases for precision seating by assuring consistent neck diameter and tension

Why Choose This Product?

The L.E. Wilson Expanding Mandrel Only 6 mm (.242″) is an essential tool for precision reloaders who work with new brass and require consistent neck tension and seating depth. By addressing manufacturing or shipping deformation on new cases and ensuring a uniform neck diameter, this mandrel die supports tighter groups and improved repeatability.
