Magpul - M-LOK - Bipod

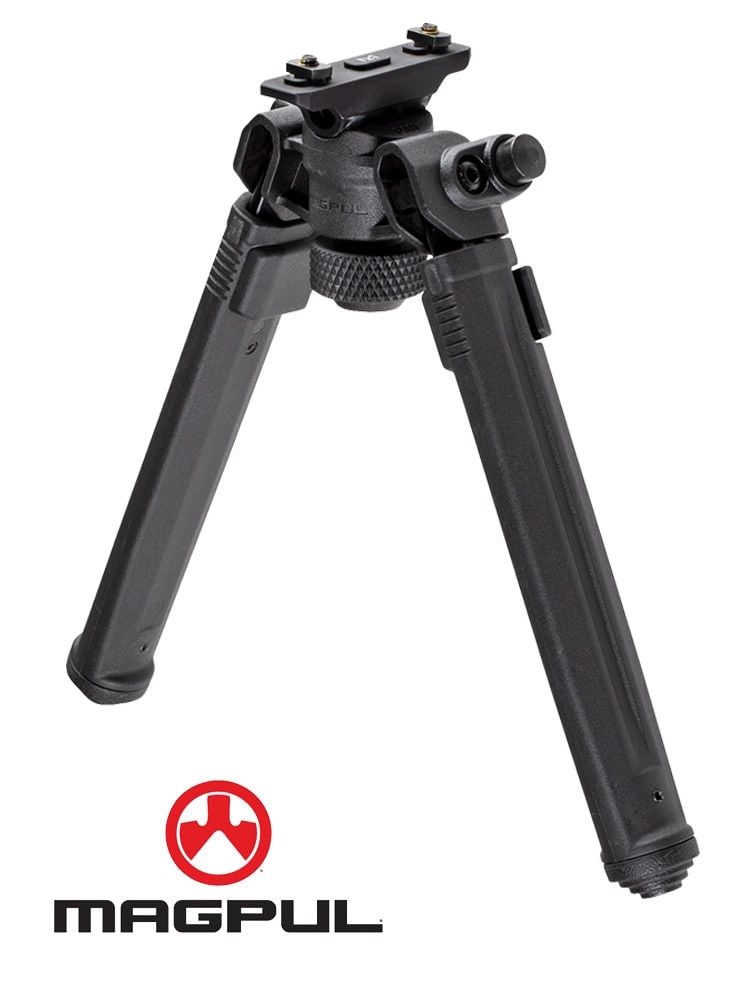

The Magpul Bipod for M-LOK offers serious strength and versatility at a price that provides unmatched value. Rich with important features, our lightweight Mil-spec hard anodized 6061 T-6 aluminum and injection-molded polymer bipod brings innovation in ergonomics, functionality, strength and value together. An aesthetically pleasing, low-profile design conceals its mechanisms and hardware, smoothly brushing off snags and bumps. Optimized for rapid one-handed adjustments, the bipod quickly and quietly transitions between countless user configurations. The Magpul Bipod includes many features normally found on bipods at a significantly higher cost.

Durable & Lightweight

The Magpul Bipod is exceptionally strong and built to perform under punishing field conditions. Like all Magpul products, the Bipod is constructed of rugged, high-strength materials and designed to last a lifetime. In the shooting position, it is easily loaded with stabilizing forward tension without fear of failure or warping. Mil-spec hard anodized 6061 T-6 aluminum, stainless steel internals, and injection-molded reinforced polymer ensure years of dependable performance and reliability, all while shaving weight. At just over 11 oz., the Magpul Bipod is lighter than many pricier bipods currently on the market.

Innovative, Adjustable, & Easy to Use

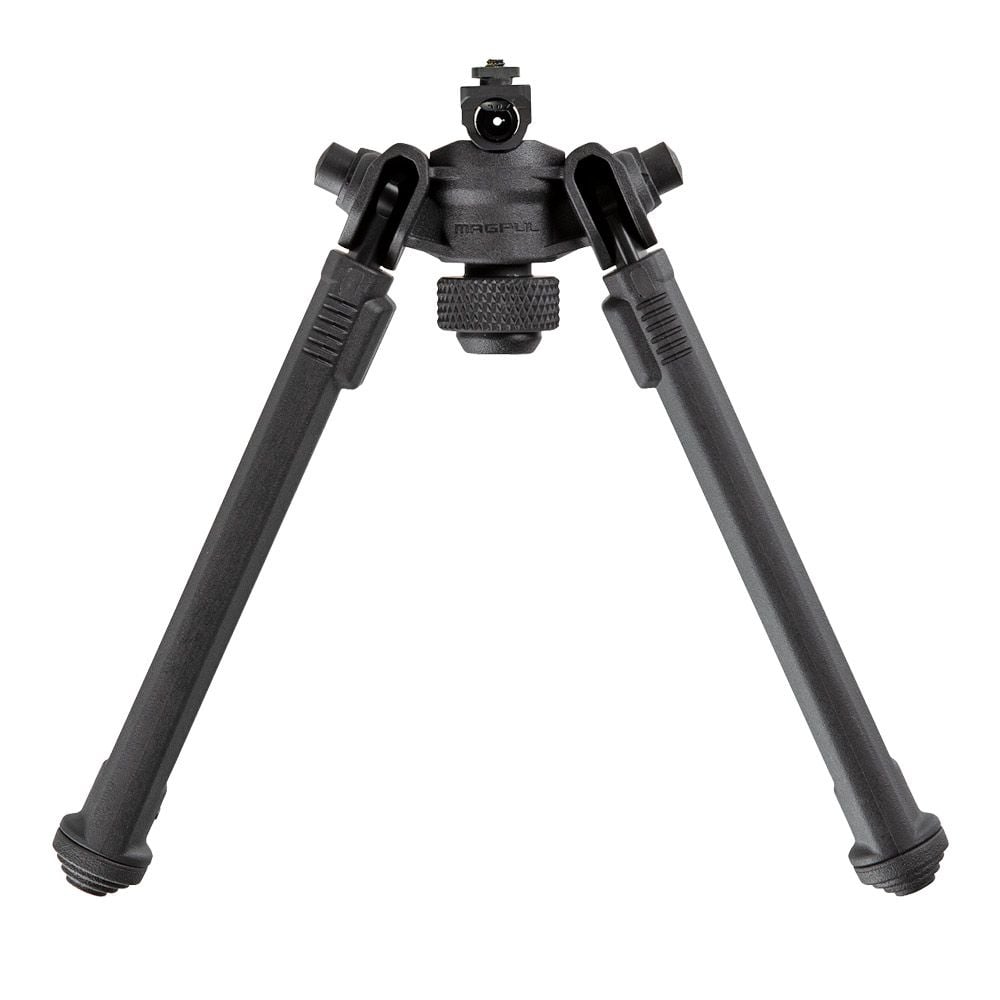

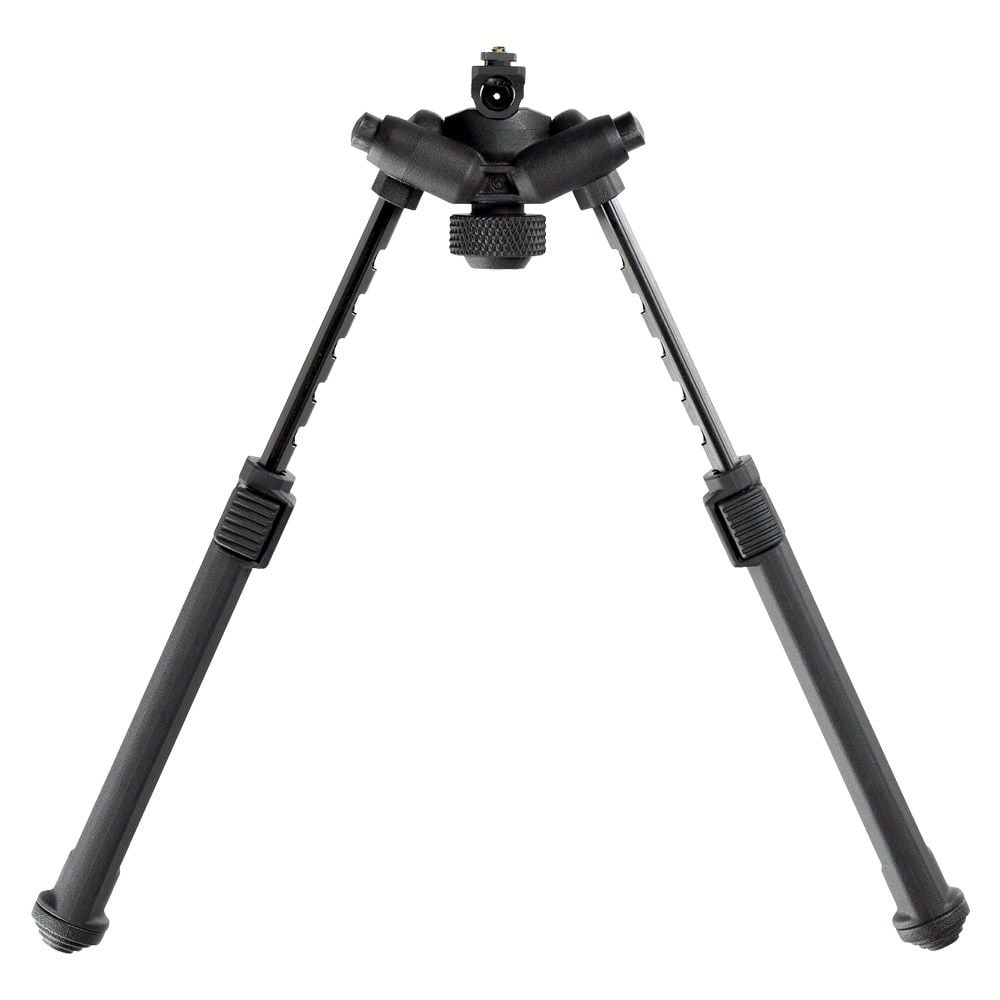

Deploying and adjusting the Magpul Bipod is quick and easy. Spring-tensioned legs stow neatly forward and snap down and lock into place with one hand. Leg extensions slide and lock securely with the push of a button on any of the seven half-inch spaced locking detents. The legs extend a full four inches, from 6.3” to 10.3”. An industry-exclusive 50° of total tilt and 40° of total pan are controlled by a glove-friendly knurled tool-less bipod locking knob located between the extended legs, allowing easy adjustment between shots. Additionally, the Magpul Bipod has the exclusive ability to lock pan at 0° while maintaining full tilt functionality.

Smooth & Unobtrusive

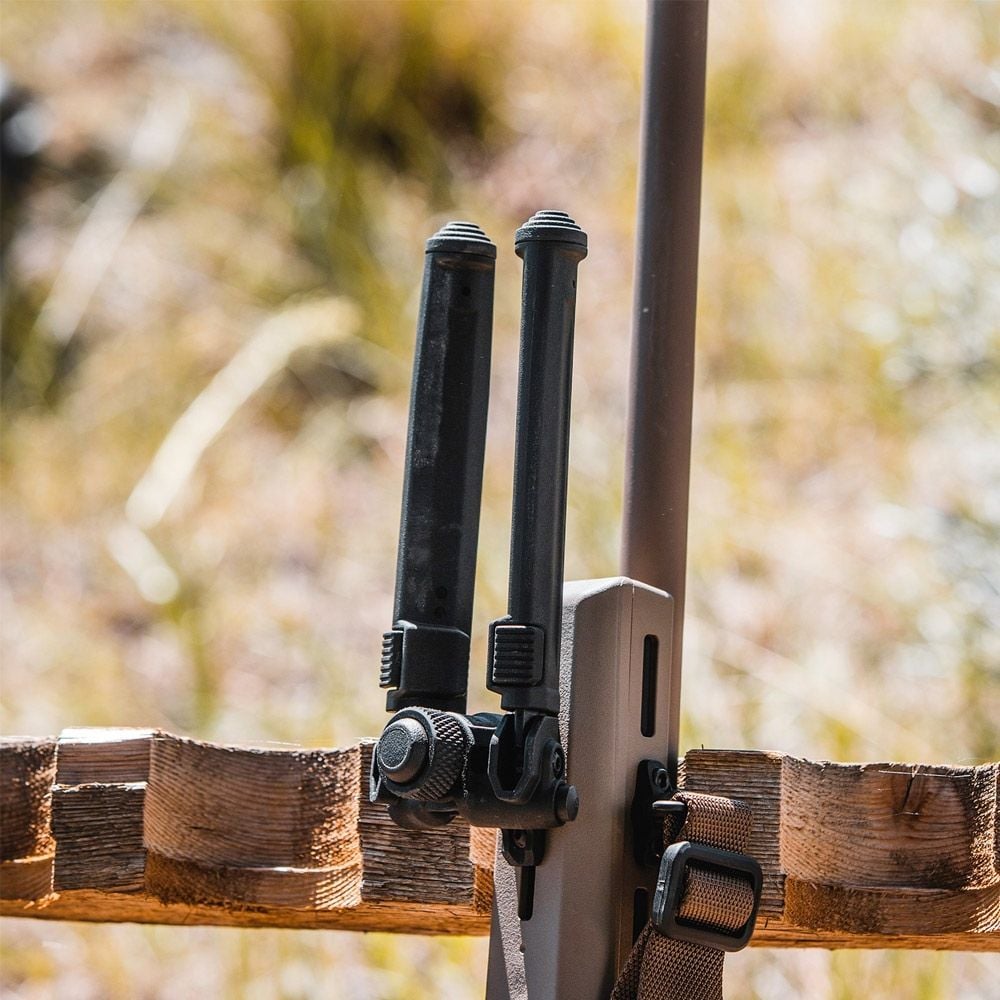

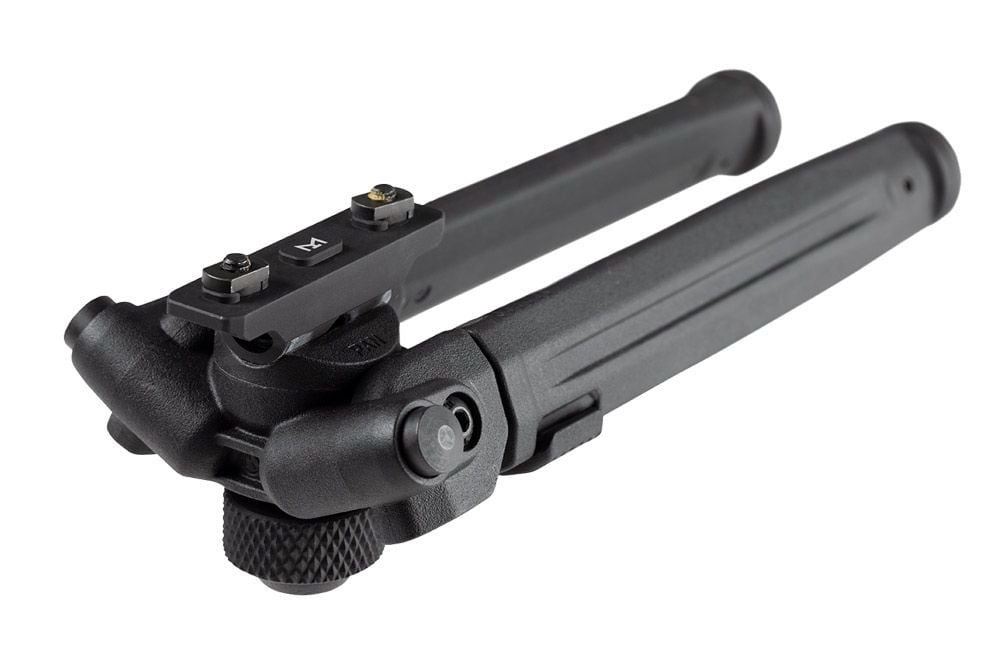

From the drawing board, the Magpul Bipod was designed to be barely noticed until needed. Folded, the streamlined housing and legs fit neatly under the barrel and are just under 2.3” deep and 3.3” wide. In addition, anodized surfaces and tight, precision tolerances mitigate squeaks and rattles.

Functional Feet

The Magpul Bipod has many features that are also useful even when it is in the stowed position. A soft rubber bipod locking knob cap is attached to the locking knob gives users a steady, non-marring forward rest while the bipod is folded. Additionally, its staggered soft rubber feet hold fast on a variety of shooting surfaces and are easily removed with a roll pin punch. Should users choose to change feet, the Magpul Bipod’s legs accept most Atlas pattern bipod replaceable feet, except for the Atlas 5-H style.

M-LOK

M-LOK stands for Modular Lock system. The M-LOK system retains an elongated slot appearance, similar to MOE slots (with different dimensions). The new slot is larger, has squared sides, and the new system adds the following feature set: M-LOK • DIRECT MOUNT CAPABILITY • CAMMED T-NUT • OPTIMIZED FOR METAL AND POLYMER MANUFACTURING • RECOIL/IMPACT MITIGATION LUGS • INTERMEDIATE SPACING OPTION • MULTI-DIRECTIONAL MOUNTING • BACKWARDS MOE COMPATIBILITY

https://www.magpul.com/Admin/Public/Download.aspx?File=/Files/Images/PDF/M-LOK/M-LOK_2015_FAQs.pdf&ForceDownload=False
