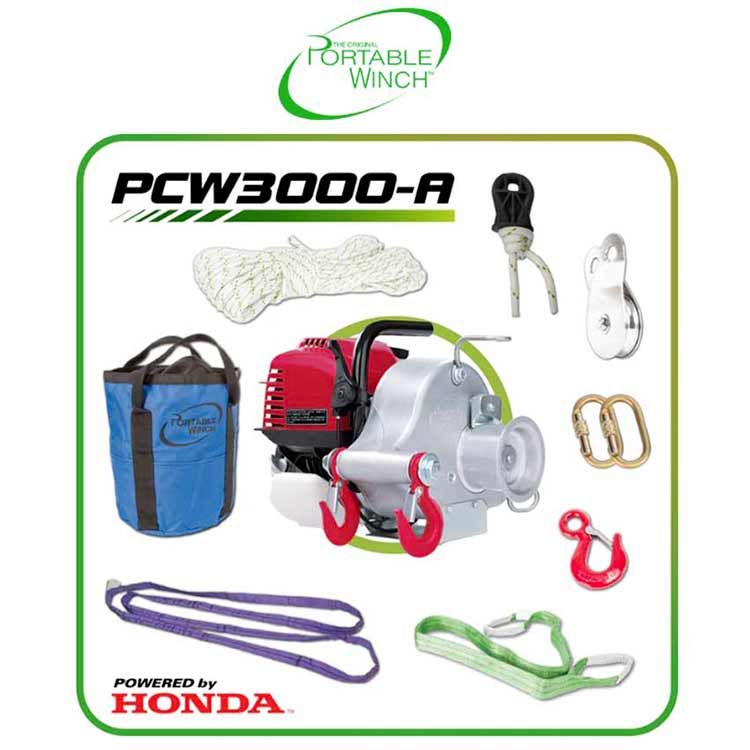

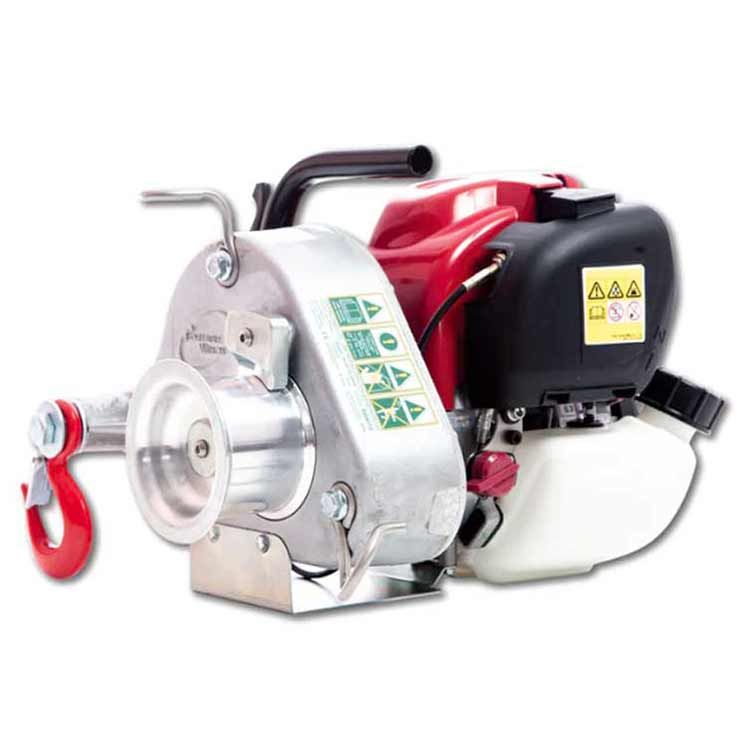

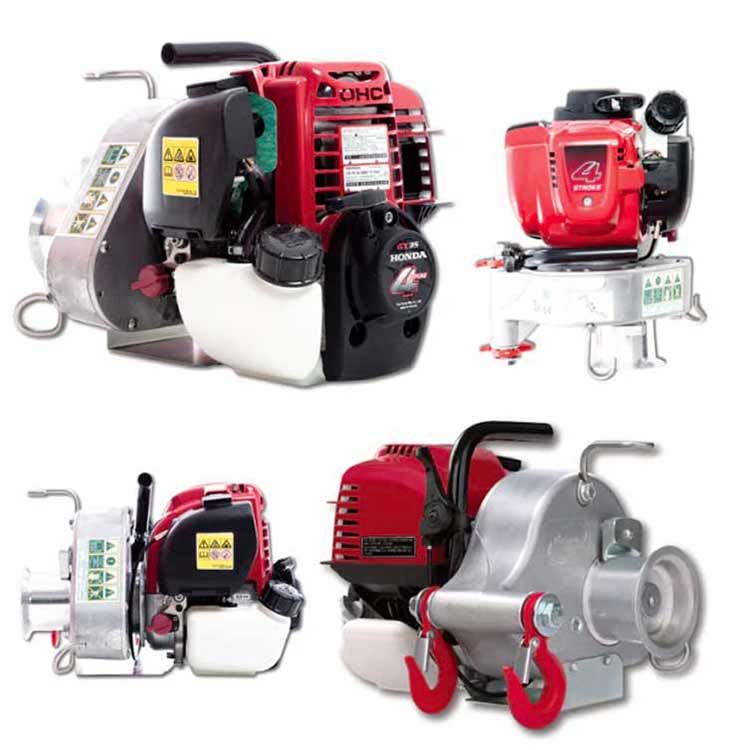

Portable Winch PCW3000-A Gas-Powered Pulling Winch Kit
The PCW3000-A pairs a lightweight 20 lb (9.5 kg) winch with a curated accessory set to keep you mobile and ready. The GX35 engine is 360° inclinable and air-cooled for dependable performance, while the 3" (76 mm) capstan drum maintains constant pulling power with low-stretch double-braid polyester rope. Single-line capacity reaches 1,600 lb (700 kg), or 3,200 lb (1,400 kg) on a double line; add pulleys to increase mechanical advantage for heavier loads. Compact overall dimensions (13-3/4" × 11-3/8" × 10-1/4" / 35 × 28.9 × 26.1 cm) and quick rigging with anchor slings, carabiners and a rope bag make this kit ideal for hunting, forestry, off-road and utility tasks.
Key Features
Honda GX35 4-Stroke: 1.0 kW / 1.3 HP @ 7,000 rpm; 360° inclinable, air-cooled
Compact & Lightweight: 20 lb (9.5 kg) dry weight for easy carry
Capstan Consistency: 3" (76 mm) drum; 33 ft/min (10 m/min) working speed
High Pulling Power: 1,600 lb (700 kg) single line; 3,200 lb (1,400 kg) double line; higher loads with pulley setups
Rope Compatibility: Double-braid polyester, low stretch; 3/8"–1/2" (10–13 mm), recommended 3/8" (10 mm)

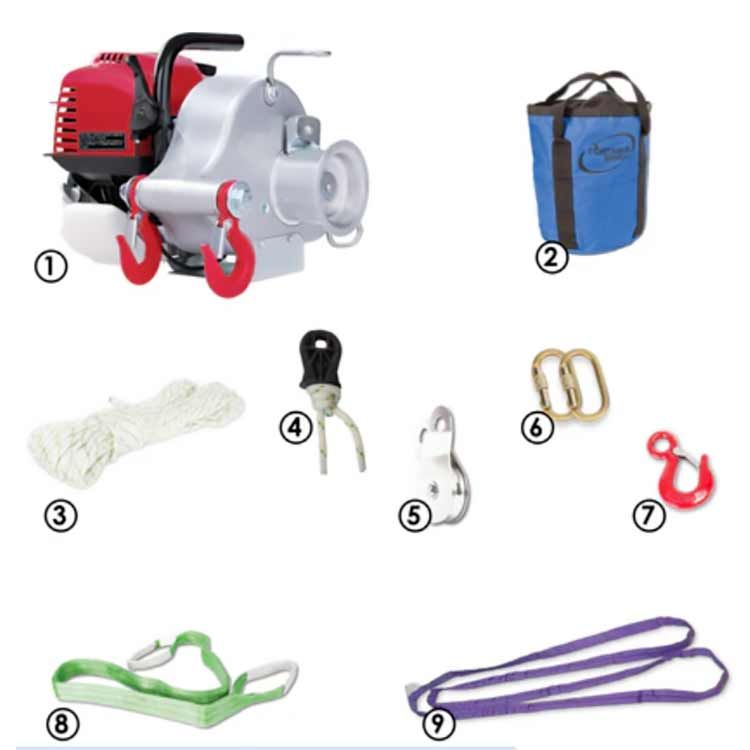

Ready-to-Work Kit: 164 ft (50 m) rope, rope bag, single pulley, 2 locking carabiners, safety hook, 6-1/2 ft (2 m) polyester sling, 8-1/4 ft (2.5 m) round sling, RopeWizer splice aid
All Technical Data
Model: PCW3000 (Kit: PCW3000-A)
Engine: Honda GX35, 4-stroke, 1.0 kW / 1.3 HP @ 7,000 rpm; unleaded gasoline (≥86); direct drive
Gearbox: Aluminum housing; multi-stage steel gears on ball bearings; oil-bath lubrication; reduction 200:1; one-way needle-bearing brake
Drum: Ø 3" (76 mm); 33 ft/min (10 m/min) line speed
Pulling Capacity: 1,600 lb / 700 kg (single); 3,200 lb / 1,400 kg (double)
Weight (Dry): 20 lb (9.5 kg)
Overall Dimensions: 13-3/4" × 11-3/8" × 10-1/4" (35 × 28.9 × 26.1 cm)
Rope Type: Double-braid polyester; length unlimited; min Ø 3/8" (10 mm), max Ø 1/2" (13 mm), recommended Ø 3/8" (10 mm)
Included Accessories (PCW3000-A): Rope bag; 50 m (164 ft) rope; RopeWizer; single pulley; 2 × locking carabiners; safety hook; 2 m (6-1/2 ft) polyester sling; 2.5 m (8-1/4 ft) round sling
Certification: CE
Why Choose This Product?
The Portable Winch PCW3000-A Gas-Powered Pulling Winch Kit combines serious pulling performance with true portability. With constant capstan power, proven GX35 reliability, a complete accessory bundle, and multi-line/pulley options for heavier loads, it’s a go-anywhere solution for hunters, off-roaders, foresters and property owners who need dependable pulling force without a vehicle-mounted winch.
