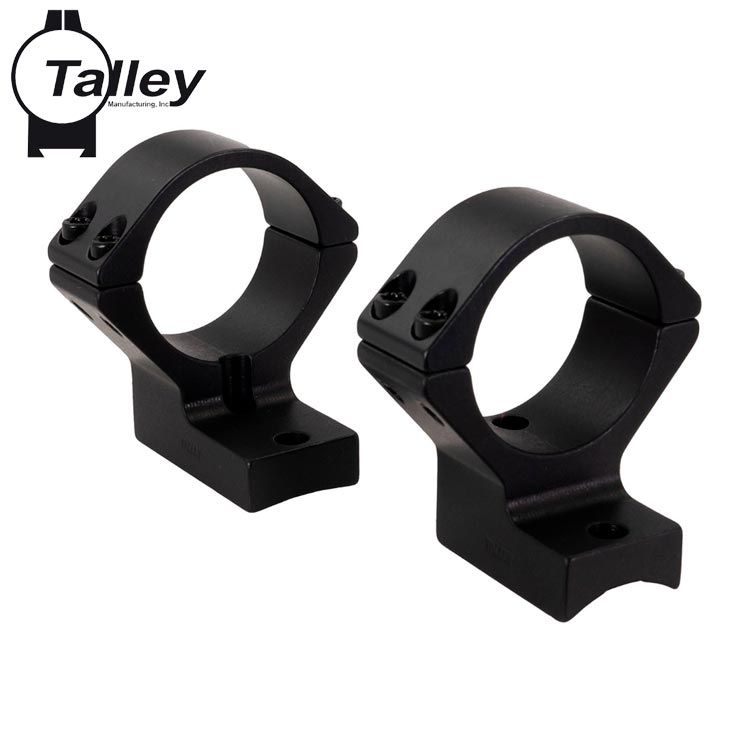

Talley Weatherby Mark V Scope Mount 6 Lug Non-Magnum 1" Low Black Anodized

Talley Weatherby Mark V Scope Mount 6 Lug Non-Magnum 1" Low Black Anodized

Traditional two-piece scope mounting systems introduce a ring-to-base interface that can shift under recoil, go out of alignment, or loosen over time. The Talley Weatherby Mark V Scope Mount eliminates that interface entirely — rings and base are machined as a single unit from aircraft-grade aluminum, producing a platform that holds zero more reliably than steel two-piece systems at a lower overall weight. Fully CNC machined to tight tolerances, it requires no lapping and installs directly out of the box. Designed exclusively for the Weatherby Mark V Non-Magnum 6-lug action, this Talley Weatherby Mark V Scope Mount 6 Lug Non-Magnum 1" Low Black Anodized keeps the scope centerline as close to the bore as possible in the low configuration, which benefits cheek weld consistency and overall rifle handling. Each set includes mounting screws and a T-15 wrench and is sold in pairs. Made in the USA by Talley Manufacturing.

Key Features

One-Piece Integrated Ring and Base : Eliminates the ring-to-base interface found in traditional two-piece designs, removing the most common source of shift and misalignment under repeated recoil cycles without increasing overall system weight.
Aircraft-Grade Aluminum Construction : Provides greater strength-to-weight ratio than steel two-piece alternatives, keeping added system weight minimal while maintaining the rigidity required for consistent zero retention.
Full CNC Machining to Tight Tolerances : No lapping required the mount installs and holds the scope tube in correct alignment straight from the box, saving setup time at the bench.
Low Ring Profile : Positions the scope as close to the receiver as the Mark V 6-lug action allows, supporting a natural, repeatable cheek weld for consistent eye relief through the season.
Includes Hardware : Ships with 6-48 mounting screws and a T-15 wrench no additional tooling required for installation.

All Technical Data

Brand : Talley
MPN : 930706
Compatible Platform : Weatherby Mark V Non-Magnum (6 Lug)
Design : One-Piece Integrated Ring and Base
Material : Aircraft-Grade Aluminum
Finish : Black Anodized
Tube Diameter : 1 in
Ring Height : Low
Rear Height : .505" (12.8 mm)
Front Height : .445" (11.3 mm)
Front Hole Spacing : .860" (21.84 mm)
Rear Hole Spacing : .600" (15.24 mm)
Weight per Set : 2.2 oz (62.4 g)
Lapping Required : No
Included Hardware : 6-48 Screws, T-15 Wrench
Sold : In Pairs
Origin : Made in the USA

Why Choose This Product?

For the Weatherby Mark V owner who wants a mount that installs once and stays put, the Talley Weatherby Mark V Scope Mount removes the variables. No ring-to-base slop, no lapping session, no separate base to torque down first. The low profile keeps the scope tight to the action, which matters on a hard-kicking Weatherby chambering where a consistent head position across shots directly affects practical accuracy. At 2.2 oz per set, it adds almost nothing to the rifle's carry weight.
