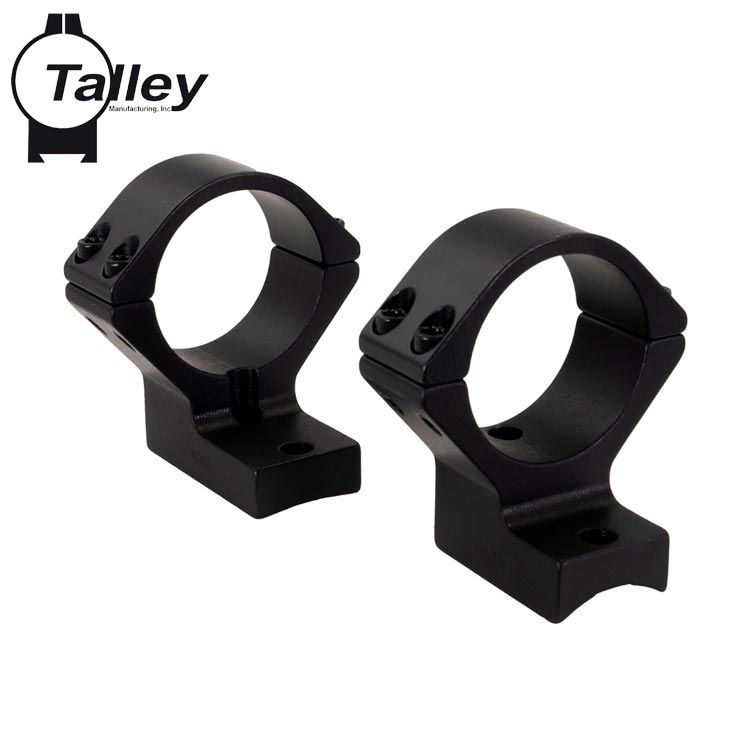

Talley Weatherby Mark V Scope Mount 6 Lug Non-Magnum 30 mm Medium Black Anodized

Traditional two-piece scope mounting systems introduce a ring-to-base interface that can shift under recoil, go out of alignment, or loosen over time. The Talley Weatherby Mark V Scope Mount eliminates that interface entirely rings and base are machined as a single unit from aircraft-grade aluminum, producing a platform that holds zero more reliably than steel two-piece systems at a lower overall weight. Fully CNC machined to tight tolerances, it requires no lapping and installs directly out of the box. Designed exclusively for the Weatherby Mark V Non-Magnum 6-lug action, this Talley Weatherby Mark V Scope Mount 6 Lug Non-Magnum 30 mm Medium Black Anodized provides additional clearance over the low profile version, accommodating 30 mm scope tubes with larger objective bells that would otherwise contact the barrel or action. Each set includes mounting screws and a T-15 wrench and is sold in pairs. Made in the USA by Talley Manufacturing.

Key Features

One-Piece Integrated Ring and Base : Eliminates the ring-to-base interface found in traditional two-piece designs, removing the most common source of shift and misalignment under repeated recoil cycles without increasing overall system weight.
Aircraft-Grade Aluminum Construction : Provides a greater strength-to-weight ratio than steel two-piece alternatives, minimizing added system weight while maintaining the rigidity required for consistent zero retention.
Full CNC Machining to Tight Tolerances : No lapping required the mount installs and holds the 30 mm scope tube in correct alignment straight from the box, saving setup time at the bench.
Medium Ring Profile : Provides additional objective lens clearance over the low configuration, accommodating 30 mm scopes with larger objective bells while maintaining a secure, stable platform on the Mark V 6-lug action.
Includes Hardware : Ships with 6-48 mounting screws and a T-15 wrench no additional tooling required for installation.

All Technical Data

Brand : Talley
MPN : 740706
SKU : ISS1246
Compatible Platform : Weatherby Mark V Non-Magnum (6 Lug)
Design : One-Piece Integrated Ring and Base
Material : Aircraft-Grade Aluminum
Finish : Black Anodized
Tube Diameter : 30 mm
Ring Height : Medium
Rear Height : .605" (15.4 mm)
Front Height : .545" (13.8 mm)
Front Hole Spacing : .860" (21.84 mm)
Rear Hole Spacing : .600" (15.24 mm)
Weight per Set : 2.6 oz (73.7 g)
Lapping Required : No
Included Hardware : 6-48 Screws, T-15 Wrench
Sold : In Pairs
Origin : Made in the USA

Why Choose This Product?

The medium profile Talley Weatherby Mark V Scope Mount in 30 mm is the practical choice when the objective lens on a modern hunting scope needs more barrel clearance than the low configuration provides. With rear and front heights of .605" and .545" respectively, it covers the typical clearance requirements of 42–50 mm objective scopes on the Mark V Non-Magnum without raising the scope line higher than a consistent cheek weld will support. The same one-piece construction and no-lap installation apply no trade-off in mounting integrity to gain the additional clearance.
