Garmin ECHOMAP UHD2 55cv With GT20-TM Transducer Chartplotter

Garmin ECHOMAP UHD2 55cv With GT20-TM Transducer Chartplotter

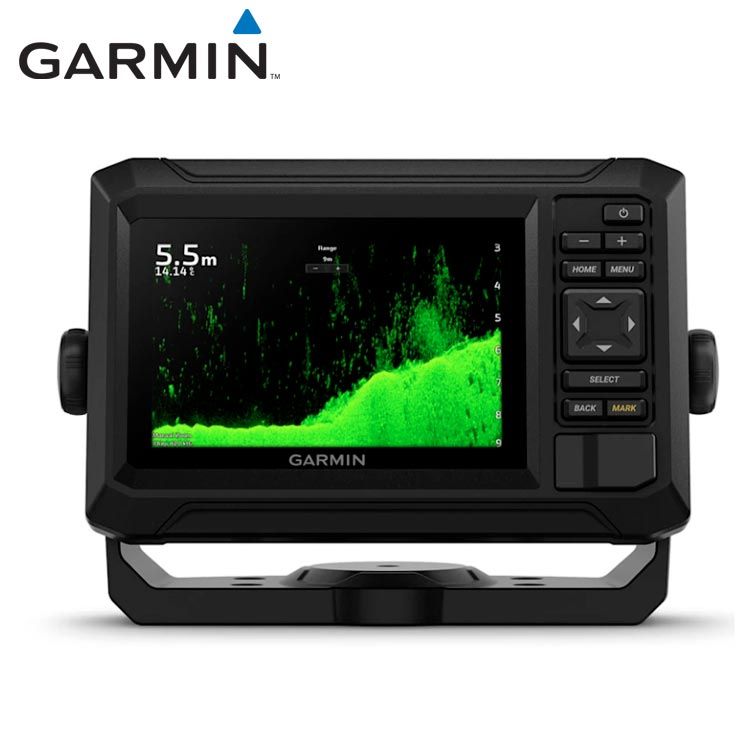

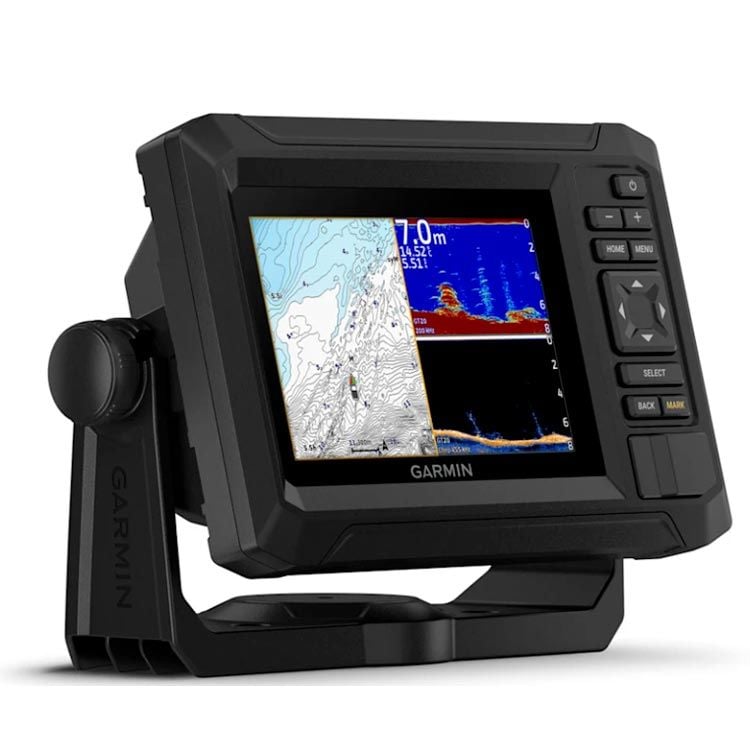

Garmin ECHOMAP UHD2 55cv With GT20-TM Transducer Chartplotter provides anglers with a compact marine electronics setup for locating structure, monitoring depth, and navigating inland and coastal waters. The included GT20-TM transducer supports traditional CHIRP sonar and ClearVü scanning sonar, allowing the display to present useful information below the boat. Its keyed interface and 5" WVGA IPS display provide a practical format for smaller boats and fishing kayaks where available mounting space is limited. Garmin Navionics+ Canada and Alaska mapping, built-in GPS, waypoint storage, route management, tide tables, and ActiveCaptain compatibility support trip planning and on-water navigation. The IPX7 water rating and bail or flush mounting options make the unit suitable for regular marine use.

Key Features

- Keyed 5" chartplotter: Provides a compact interface for navigation and sonar viewing
- Included GT20-TM transducer: Supports traditional CHIRP sonar and ClearVü scanning sonar
- Garmin Navionics+ Canada and Alaska mapping: Supports inland and coastal navigation
- Built-in GPS receiver: Supports waypoint, track, and route management on the water
- ActiveCaptain compatibility: Enables access to compatible mobile features and downloadable updates
- IPX7 water rating: Provides protection suited to regular marine use
- Bail or flush mounting: Allows installation according to available console space

All Technical Data

- Brand: Garmin
- Model: ECHOMAP UHD2 55cv
- Product type: Chartplotter and fishfinder
- Included transducer: GT20-TM
- Mapping: Garmin Navionics+ Canada and Alaska
- Display type: WVGA IPS
- Display size: 4.3" x 2.6" (10.9 cm x 6.6 cm)
- Display resolution: 800 x 480 pixels
- Unit dimensions: 7.4" x 4.8" x 2.4" (18.8 cm x 12.2 cm x 6.2 cm)
- Weight: 1.1 lb (0.5 kg)
- Water rating: IPX7
- Mounting options: Bail or flush
- Sonar display: Included
- Traditional sonar: Built-in single-channel CHIRP, 50, 77, 83, and 200 kHz
- ClearVü sonar: Built-in 260, 455, 800, 1000, and 1200 kHz
- Sonar power output: 500 W
- Receiver: 5 Hz
- Navigation satellites: GPS and Galileo
- WAAS support: Built-in
- Waypoints: 5,000
- Track points: 50,000
- Saved tracks: 50
- Navigation routes: 100
- Data card compatibility: 1 microSD card, maximum 32 GB

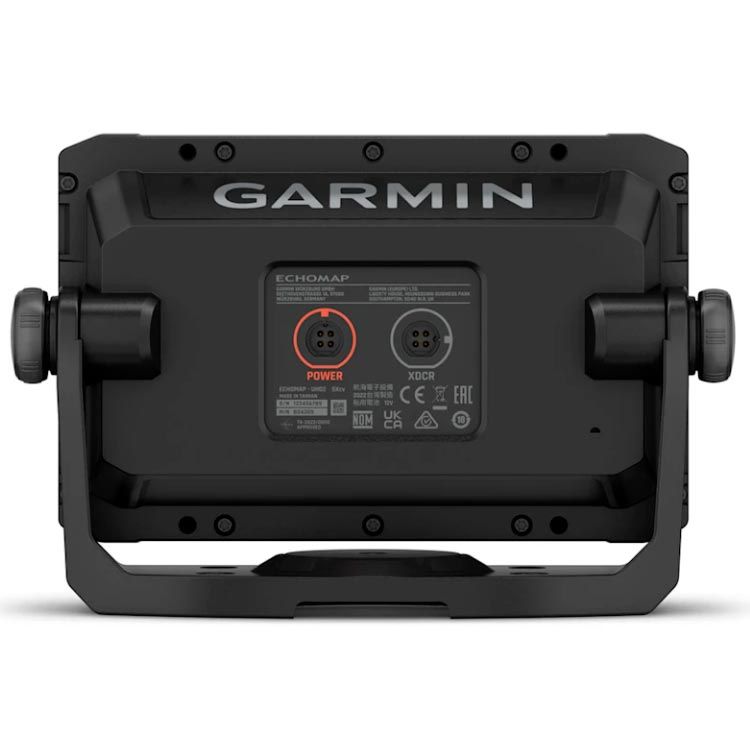

- Transducer port: 1 x 4-pin
- Power input: 9 to 18 Vdc
- Typical current draw at 12 Vdc: 1.0 A
- Maximum current draw at 12 Vdc: 1.5 A
- Maximum power usage at 10 Vdc: 18 W
- Garmin Quickdraw Contours: Compatible
- ActiveCaptain: Compatible
- Tide tables: Included
- Built-in Auto Guidance+: Downloadable through the ActiveCaptain app

Why Choose This Product?

Garmin ECHOMAP UHD2 55cv With GT20-TM Transducer Chartplotter is a practical choice for anglers who want navigation and sonar capabilities in a compact keyed unit. Its included transducer, detailed mapping, GPS functions, water-resistant construction, and flexible mounting options provide a reliable and easy-to-use setup for regular fishing trips.
