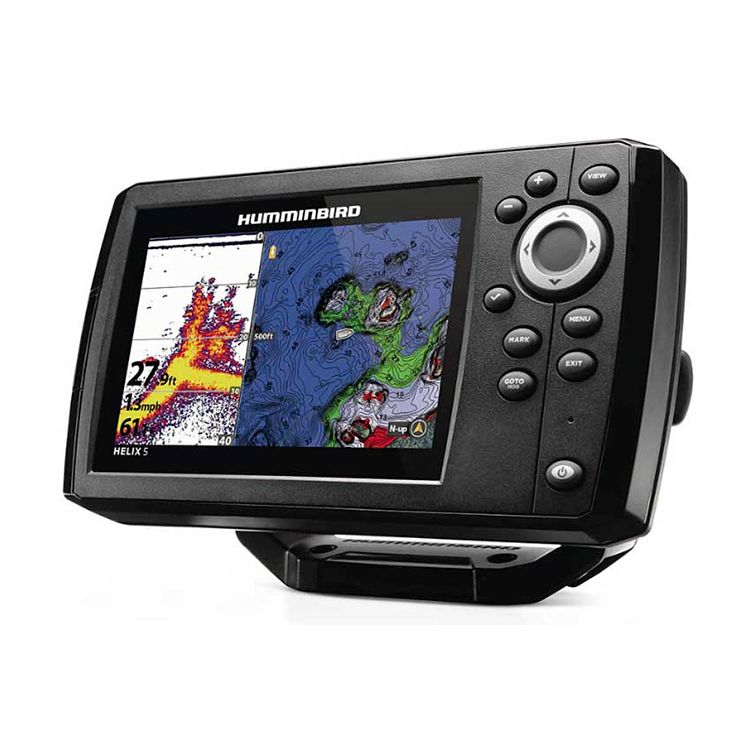

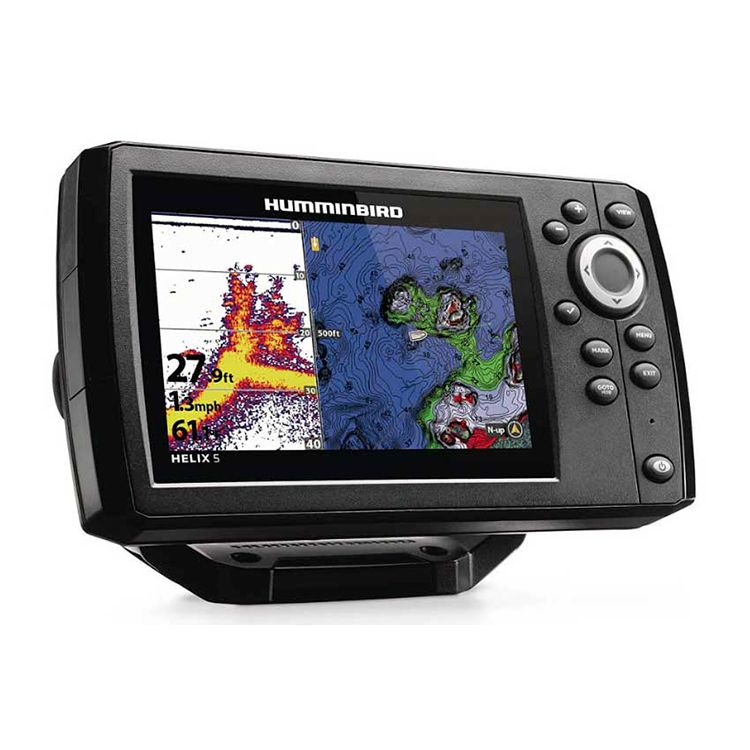

Humminbird HELIX 5 CHIRP GPS G3 PT 5" GPS Fish Finder with LM CDN Card
The Humminbird HELIX 5 CHIRP GPS G3 PT is built for anglers who want advanced sonar performance and reliable GPS navigation in a truly portable package. The Dual Spectrum CHIRP sonar provides detailed target separation and depth precision, while the internal GPS with Humminbird Basemap and AutoChart Live lets you chart and save fishing spots on the go. LakeMaster Canadian Card included ensures detailed lake coverage and mapping accuracy across Canada. The portable shuttle, soft-sided carrying case, 7Ah battery, charger, and suction cup transducer make it ideal for boats, kayaks, or ice fishing setups.
Key Features
Display: 5" Widescreen Color TFT, 800H × 480V
Sonar: Dual Spectrum CHIRP 2D, Wide/Narrow Modes, 20°, 42° & 60° Coverage @ -10 dB
GPS/Mapping: Internal GPS, Humminbird Basemap, AutoChart Live
LakeMaster Canadian Card included

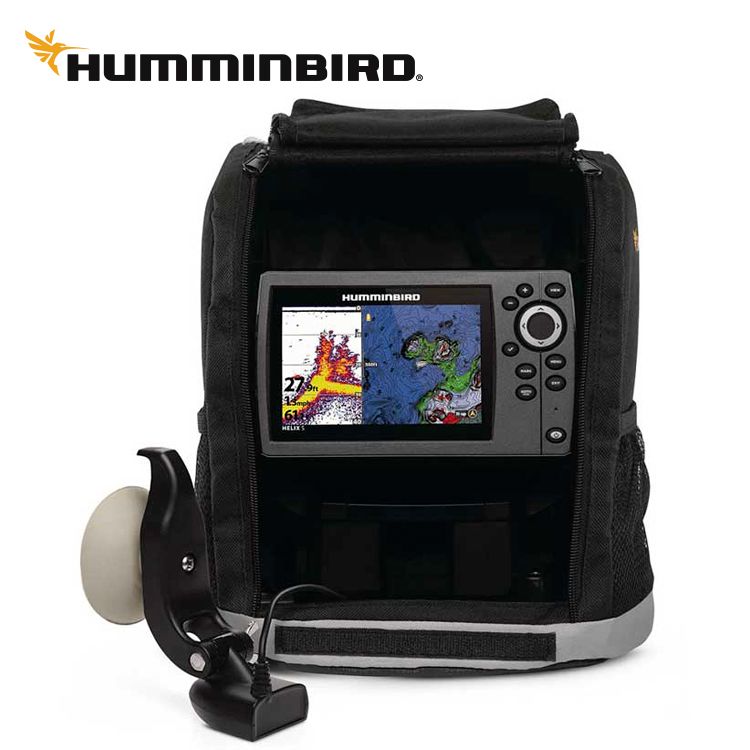

Portable Kit: Shuttle, Carrying Case, 7Ah Battery, Charger Included
Transducer: XNT 9 HW T Included (Suction Cup Portable Mount)
All Technical Data
Display Size (Diagonal): 5 in (12.7 cm)
Display Pixel Matrix: 800H × 480V
Sonar Standard: Dual Spectrum CHIRP
Sonar Coverage: 20°, 42° & 60° @ -10 dB
CHIRP Frequencies Supported: Narrow (180-240 kHz), Wide (140-200 kHz), Full (150-220 kHz)
Depth Range: Up to 1,200 ft (standard), 3,000 ft (optional 50 kHz)
Target Separation: 2.5 in
Power Output: 4,000 W Peak-to-Peak, 500 W RMS
Power Input: 10.8–20 V DC (615 mA draw)
GPS: Internal Receiver, Chartplotting Included
Memory Card Slot: Single microSD (pre-loaded with LakeMaster Canadian Card)
Waypoints / Routes / Tracks: 2,750 / 45 / 50 (20,000 Points)
Mount Type: Portable Kit with Suction Cup Transducer
Software Updates: Supported (Upgradable via SD)
Why Choose This Product?
The HELIX 5 CHIRP GPS G3 PT offers all-in-one performance for portable fishing applications. Dual Spectrum CHIRP delivers sharp detail while the included LakeMaster Canadian Card provides accurate mapping and depth data across Canadian waters.
