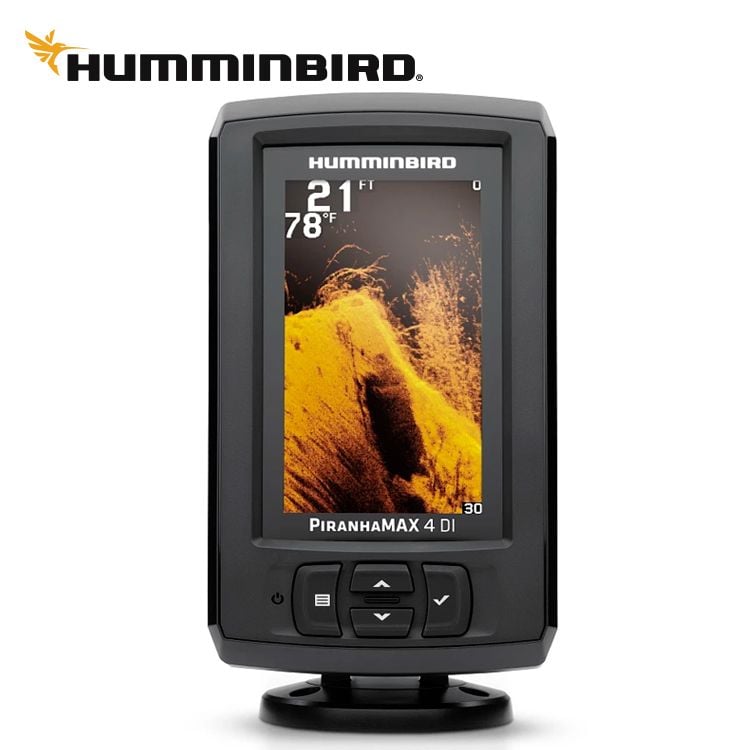

Humminbird PiranhaMAX 4 DI 4.3" Sonar Fish Finder
The Humminbird PiranhaMAX 4 DI gives you a clear, modern view of what is happening under the boat with Down Imaging plus classic Dual Beam coverage. This Humminbird PiranhaMAX 4 DI 4.3" Sonar Fish Finder keeps operation straightforward while adding helpful tools like Fish ID+, fish alarms, depth alarms, and zoom. Dual Beam helps you choose detail or wider coverage, while Down Imaging makes bottom structure stand out with sharper definition. It includes a tilt-and-swivel gimbal mount and an XNT 9 DI T transom-mount transducer for a practical, boat-ready setup.
Key Features
Display: 4.3" Color TFT, 272H x 480V, 256 Color
Sonar: Dual Beam Sonar + Down Imaging, 200/455/455 kHz, 28°, 16°, & 74° Coverage @ -10dB
Down Imaging Depth: Up to 320 ft
Transducer: XNT 9 DI T Transom-Mount Included
Mounting: Tilt and Swivel Gimbal Mount
Interface: Keypad Control
All Technical Data
Display Size (Diagonal): 4.3 in
Display Pixel Matrix: 272H x 480V
Display Type: Color TFT
Display Colors: 256 Color
Sonar Standard: Dual Beam, Down Imaging
Sonar Coverage: 28°, 16°, & 74° @ -10dB
Sonar Frequencies Supported: 200/455/455 kHz
Depth (Sonar): 600 ft (200 kHz), 320 ft (455 kHz)
Depth (Down Imaging): 320 ft
Target Separation: 2.5 in
Power Input: 10.8-20 VDC
Power Draw: 180 mA
Power Output (RMS): 300 Watts
Power Output (Peak-to-Peak): 2400 Watts
Mount (Standard): Gimbal
Mount Size (Standard): 3.91 in W x 7.34 in H x 3.62 in D
Mount (Optional): In-Dash Mounting Kit
Mount Size (Optional): 3.91 in W x 5.875 in H x 2.5 in D
Transducer Mount Location: Transom
Memory Card Slot: None
GPS Chartplotting: Not Supported
Upgradable Software: No
Temperature: Built In
Why Choose This Product?
If you want a simple fish finder that still delivers a sharper look at bottom structure, Down Imaging is the upgrade you will actually use. With an easy keypad interface and a clear 4.3" color screen, it is built to keep your attention on fishing instead of settings.
