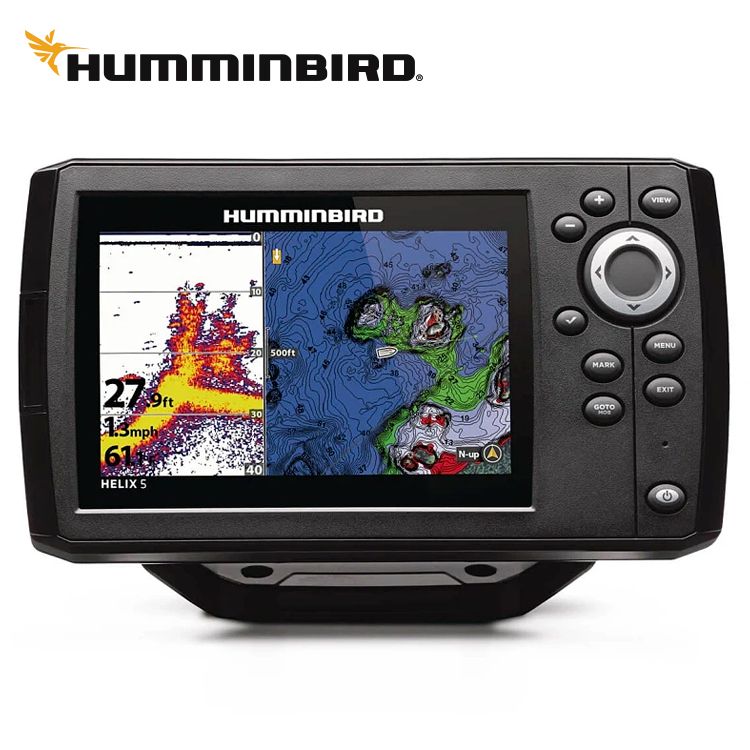

Humminbird HELIX 5 CHIRP GPS G3 5" GPS Fish Finder with LM CDN Card
The Humminbird HELIX 5 CHIRP GPS G3 is designed for anglers who want clear sonar imaging and reliable navigation in one compact unit. This Humminbird HELIX 5 CHIRP GPS G3 5" GPS Fish Finder features Dual Spectrum CHIRP with Wide and Narrow search modes, allowing you to cover more water or focus on structure detail. The internal GPS includes Humminbird Basemap and AutoChart Live for creating real-time maps as you fish. LakeMaster Canadian Card included for precise inland coverage and charting. The included transom-mount transducer and gimbal mount ensure easy installation and dependable performance.
Key Features
Display: 5" Widescreen Color TFT, 800H x 480V
Sonar: Dual Spectrum CHIRP 2D, Wide/Narrow Modes, 20°, 42° & 60° Coverage @ -10dB
GPS/Mapping: Internal GPS, Humminbird Basemap, AutoChart Live
LakeMaster Canadian Card included
Transducer: XNT 9 HW T Transom-Mount Included
Mounting: Tilt and Swivel Gimbal Mount
All Technical Data
Display Size (Diagonal): 5 in
Display Pixel Matrix: 800H x 480V
Display Type: Color TFT
Sonar Standard: Dual Spectrum CHIRP
Sonar Coverage: 20°, 42° & 60° @ -10dB
CHIRP Frequencies Supported: Narrow (180–240 kHz), Wide (140–200 kHz), Full (150–220 kHz)
Depth (Sonar): 1,200 ft (standard transducer), 3,000 ft (optional 50 kHz)
Target Separation: 2.5 in
Power Output: 4,000 W Peak-to-Peak, 500 W RMS
Power Input: 10.8–20 VDC
Memory Card Slot: Single microSD slot (preloaded with LakeMaster Canadian Card)
GPS: Internal GPS, Chartplotting Included
Waypoints/Routes/Tracks: 2,750 / 45 / 50 Tracks (20,000 Points)
Software: Upgradable Yes
Why Choose This Product?
The HELIX 5 CHIRP GPS G3 provides accurate sonar, advanced mapping tools, and Canadian coverage right out of the box thanks to the included LakeMaster Card. It’s compact, reliable, and perfect for any angler looking for clarity and confidence on Canadian waters.
