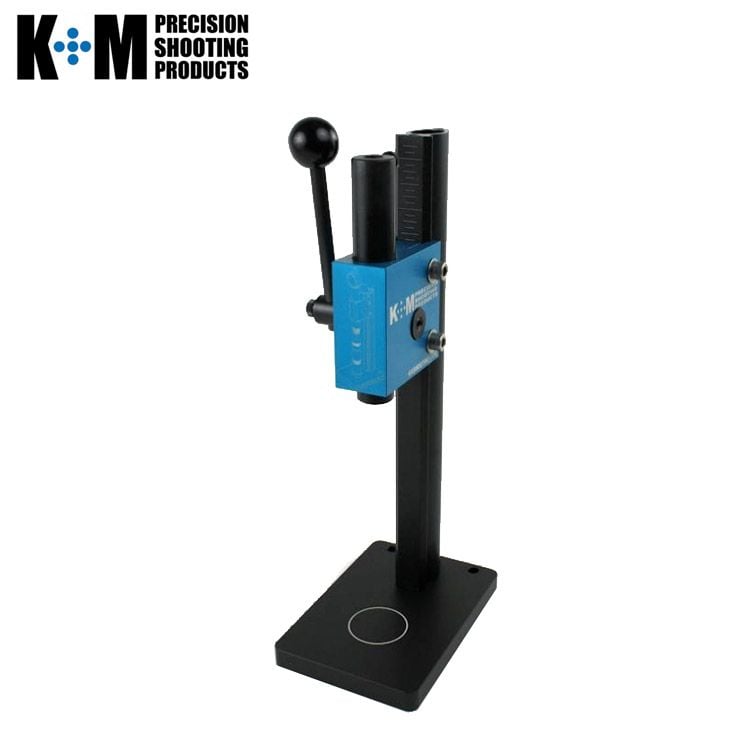

K+M Precision Reloading LH Arbor Press

K+M Precision Reloading LH Arbor Press

K+M Precision Reloading Left Hand Arbor Press is built for reloaders who want better control and feedback during bullet seating and neck sizing operations. Its toggle link design provides a smooth press feel, helping the user sense bullet seating pressure as the bullet enters the case neck. This makes it useful for precision loading where repeatability and careful handling matter. The compact base works well on a home loading bench and can also be used at the range. Mounting holes in the base allow the press to be hard mounted when a fixed setup is preferred, while the column reference scale and die placement target help simplify setup and adjustment.

Key Features

- Designed for use with inline bullet seating and neck sizing dies
- Smooth toggle link design helps provide sensitive feedback during bullet seating
- Compact format suitable for use at the loading bench or at the range
- Base mounting holes allow optional hard mounting to a loading bench
- Column reference scale and die placement target help simplify press setup

All Technical Data

- Brand: K+M
- Model: Precision Reloading LH
- Product Type: Arbor press
- Standard Column Overall Height: 11" (27.9 cm)
- Extra Long Column Overall Height: 18.9" (47.9 cm)
- Standard Column Working Height Without Force Pack: 0" - 7.5" (0 - 19.1 cm)
- Extra Long Column Working Height Without Force Pack: 0" - 15.4" (0 - 39.0 cm)
- Standard Column Working Height With Force Pack: 0" - 6.0" (0 - 15.2 cm)
- Extra Long Column Working Height With Force Pack: 0" - 13.9" (0 - 35.2 cm)
- Base Size: 3.5" x 5" (8.9 cm x 12.7 cm)
- Base Mounting Holes: 2 holes at 0.3" (0.7 cm)
- Mounting Hole Centerline: 2.3" (5.7 cm)
- Press Stroke: 1" (2.5 cm)
- Safe Max Force: 150 lb
- Throat Depth: 1.6" (4.0 cm)
- Standard Force Pack: 150 lb maximum force
- Low Force Pack: 50 lb maximum force
- Left Hand

Why Choose This Product?

K+M Precision Reloading LH Arbor Press is a practical choice for reloaders who want a compact, controlled press for precision seating and sizing work. Its smooth feel, adjustable height, optional bench mounting and clear setup references make it easier to use consistently during careful reloading sessions.
