K&M Shooting Micro Adjustable Neck Turner with Carbine Cutter

K&M Shooting Micro Adjustable Neck Turner with Carbine Cutter

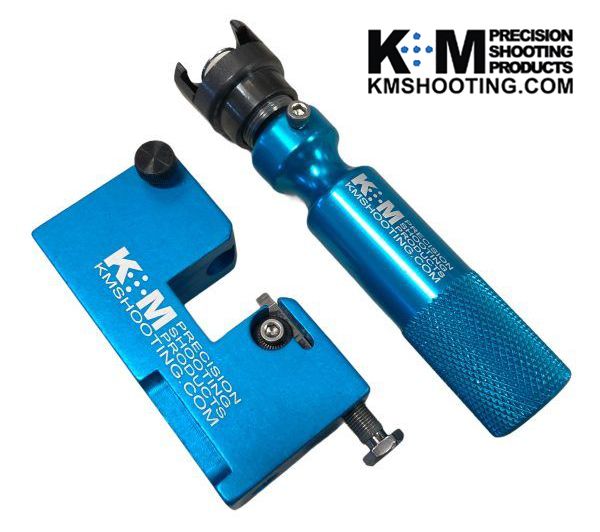

Micro-Adjustable Large Caliber Neck Turner Body with Cutter

The K&M large caliber neck turner has a very unique cutter adjustment mechanism that allows for a very precise cutter adjustment. This design incorporates very fine pitched threads of a screw within a screw concept which yields 0.002” cutter advance for each rotation of the adjustment nut. As a point of reference and comparison, a micrometer advances the spindle 0.025” for every revolution of the thimble. There are etched markers on the neck turner body around the circumference of the cutter adjustment screw hole placed every 30 degrees radially and as a reference, there is one punch mark on the face of the adjustment nut. When the adjustment nut is rotated one increment the cutter advancement is 0.0002”.

You can drive the cartridge with the power adapter and proper shell holder by hand when the handle is installed or remove the handle from the power adapter and insert the ¼” hex stem into a cordless screwdriver.

Use the K&M SHELL HOLDER # GUIDE to determine the appropriate Shell Holder for your particular application.
