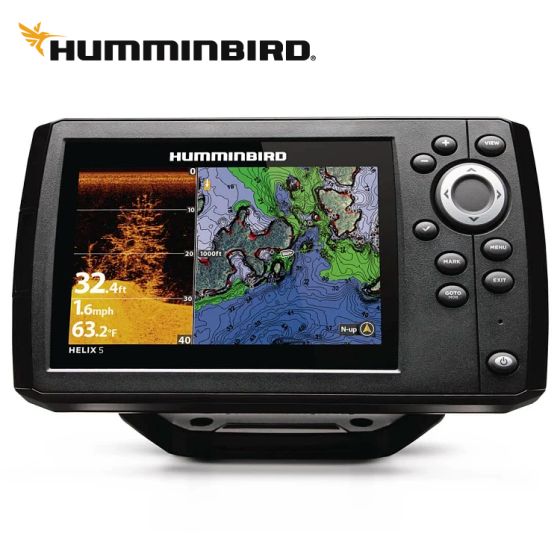

Humminbird Helix 5 CHIRP DI GPS G3 5" GPS Fish Finder with LM CDN Card

Humminbird Helix 5 CHIRP DI GPS G3 5" GPS Fish Finder with LM CDN Card

The Humminbird Helix 5 CHIRP DI GPS G3 is built for anglers who want cleaner returns, faster decisions, and repeatable results on the water. Helix 5 CHIRP DI GPS G3 pairs Dual Spectrum CHIRP sonar with CHIRP Down Imaging to separate fish from cover and reveal bottom detail with confidence. Keypad Control keeps your operation quick and reliable in any conditions, so you spend less time in menus and more time on the bite. Internal GPS with built-in mapping and LakeMaster Canadian Card inluded helps you follow contours, avoid hazards, and get back to the exact spot that produced. AutoChart Live lets you create real-time maps of your fishing areas as you move. The Humminbird Helix 5 CHIRP DI GPS G3 5" GPS Fish Finder includes the control head, transom-mount transducer, power cable, gimbal bracket, and mounting hardware.

Key Features

Display: 5" widescreen Color TFT
Sonar: Dual Spectrum CHIRP 2D, CHIRP Down Imaging, Down Imaging
GPS/Mapping: Internal GPS with built-in mapping, LakeMaster Canadian Card inluded, and compatibility with LakeMaster, CoastMaster, and Navionics charts
Transducer: XNT 9 HW DI T included, transom-mount installation
Mounting: Gimbal mount included

All Technical Data

Display Size: 5 in
Display Pixel Matrix: 800H x 480V
Display Type: Color TFT
Display Colors Grayscale: 16-Bit
Interface: Keypad Control
Included Features: Down Imaging, Built In GPS, Dual Spectrum CHIRP, Built In Mapping
Memory Card Slot: Single Micro SD
Sonar Standard: Dual Spectrum CHIRP, CHIRP Down Imaging
Sonar Coverage: 20°, 42° & 60° @ -10dB
Sonar Optional: 50/83/200 kHz
CHIRP Frequencies Supported: Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz), Optional (28-250 kHz)
Sonar Frequencies Supported: 50/83/200/455/800 kHz and HW DSC CHIRP
CHIRP Imaging Frequencies Supported: 455 kHz (440-500 kHz)
Depth Sonar: 3,000 ft (optional 50 kHz), 1,200 ft (standard transducer)
Depth Down Imaging: 350 ft (455 kHz)
Power Draw: 615 mA
Power Input: 10.8-20 VDC
Power Output Peak-to-Peak: 4000 Watts
Power Output RMS: 500 Watts
Screen Snap Shot: Included
Sonar Recording: Included
Mount Standard: Gimbal
Mount Standard Size: 7.55 in W x 4.64 in H x 3.3 in D
Mount Optional: In-Dash Mounting Kit
Mount Optional Size: 7.55 in W x 4.28 in H x 1.13 in D
Transducer Included: XNT 9 HW DI T
Transducer Mount Location: Transom
GPS Chartplotting: Included
GPS Receiver: Internal
GPS Trackplotting: Included
Waypoints, Routes, Tracks/Points: 2,750, 45, 50/20,000
360 Imaging Compatibility: No
MEGA Live Compatibility: No
Humminbird Basemap: Included
LakeMaster Compatibility: Yes
CoastMaster Compatibility: Yes
Navionics Gold/HotMaps Compatibility: Yes
Navionics Platinum+ Compatibility: Yes
Platinum Compatibility: Yes
Minn Kota i-Pilot Link Compatibility: No
Minn Kota Talon Shallow Water Anchor Compatibility: No
Radar Compatibility: No
5-Port Ethernet Switch Compatibility: No
AIS Compatibility: Not Supported
Autopilot Compatibility: No
Heading Sensor GPS Compatibility: No
NMEA2000: Not Supported
Target Separation: 2.5 in
Noise Rejection: 6 Steps
Upgradable Software: Yes
View Preset Keys: No
X-Press Menu System: Yes
Custom Digital Readout: Yes
Custom View Selections: No
Speed: Included
Temperature: Built In
Temperature Alarm: Yes
Temperature Graph: Yes
HDMI Compatible: No
In The Box: Control head, transom-mount transducer, power cable, gimbal mounting bracket, mounting hardware

Why Choose This Product?

The Helix 5 CHIRP DI GPS G3 gives you clearer sonar detail so you can identify bottom changes and fish-holding structure faster. With dependable keypad control and internal GPS, you can mark productive spots and return with confidence. It’s a strong choice for anglers who want proven Humminbird sonar and practical navigation in one compact unit.
